Specialized in foam sheet extrusion line & products

PE Foam Net Extrusion Line & PE Foam Pipe Extrusion Line

PE Foam Net Extrusion Line & PE Foam Pipe Extrusion Line

PE-Foam-Net-Extrusion-Line-&-PE-Foam-Pipe-Extrusion-Line

PE-Foam-Pipe-Extrusion-Line

Features of PE Foam Net Extrusion Line & Pipe Exrusion Line

PE Foam Net Extrusion Line & PE Foam Pipe Extrusion Line produces PE foam pipe, rod, and net which are excellent materials for insulation application, construction industry, and protection packaging by the economical extruding system.

  • A unique screw provides an intensive mixing and enables the production of quality foam sheet with any cell size and density.
  • Our dies, specially manufactured for its high tolerance, provide an efficient process and flexibility to create the highest quality foam to meet customer’s diverse demands.
  • Auto temp. control via PID temp. control or PLC controlled touch screen on customer’s request.
  • AC motor and variable frequency inverter control system are durable at any harsh factory environment.

pe foam net extruder

pe foam net extrusion linepe foam pipe extrusion line



Specifications of PE Foam Net Extrusion Line & Pipe Exrusion Line

 Item/Model No. PI-PE 65 PI-PE 70 PI-PE 80
 Capacity 15-40kg/hr 20-50kg/hr 20-55kg/hr
 Max. out dia. 40mm 52mm 60mm
 Density 23-40kg/m3 23-40kg/m3 23-40kg/m3
 Electricity 55kw 55kw 60kw
 Product type net, pipe, rod net, pipe, rod pipe, rod



Applications of PE Foam Net Extrusion Line & Pipe Exrusion Line




pe-foam-net-pipe-extruder

Insulation materials and agriculture and building purpose

Packing any kinds of fruits and bottles Foam pipe for insulation



EPE Foam Net Extrusion Line / EPE Foam Tube Extrusion Line with Double Heads

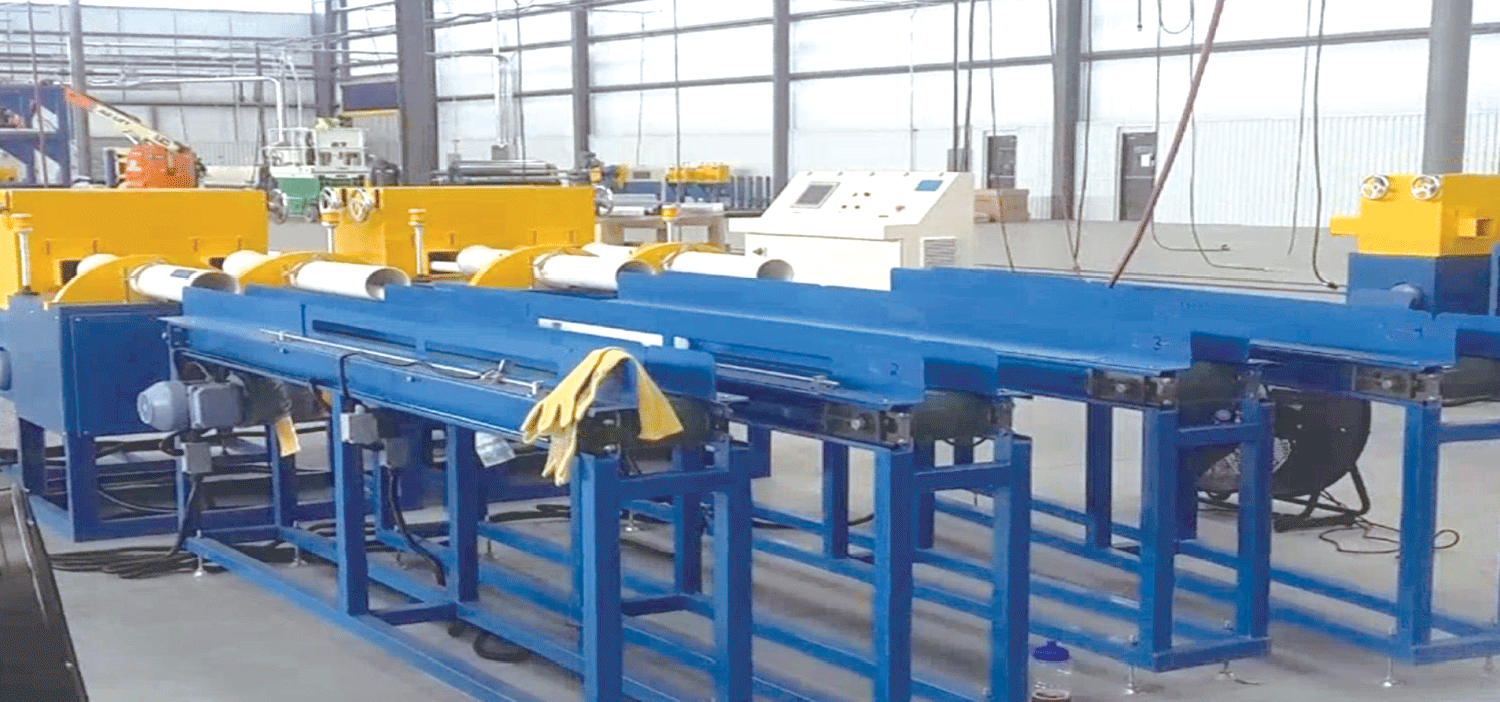

EPE Foam Tube Extrusion Line with Four Heads

EPE-Foam-Tube-Extrusion-Line-with-Four-Head
EPE-Foam-Tube-Extrusion-Line
