Specialized in foam sheet extrusion line & products

XLPE Foam Sheet Extrusion Line

(Crosslinked PE Foam Sheet Production Line)

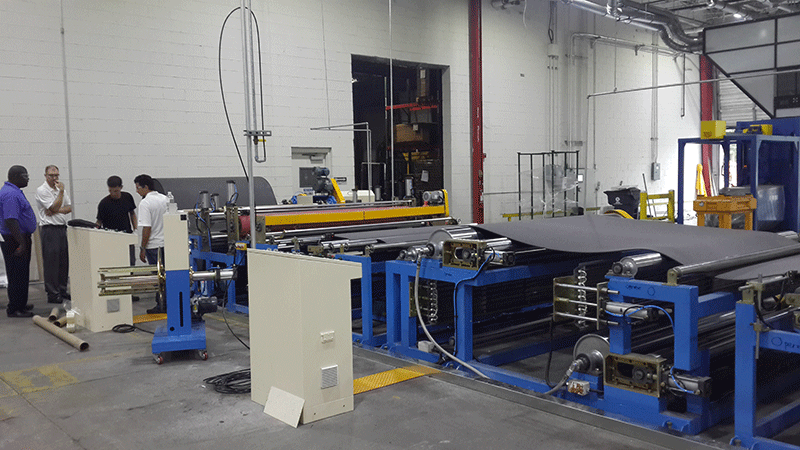

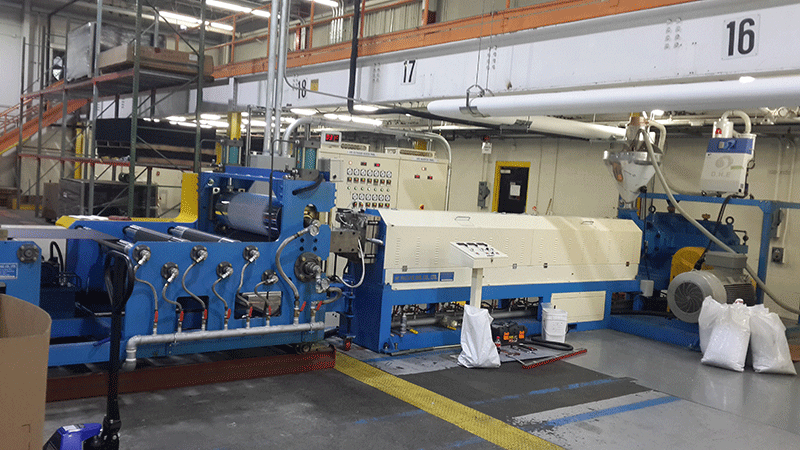

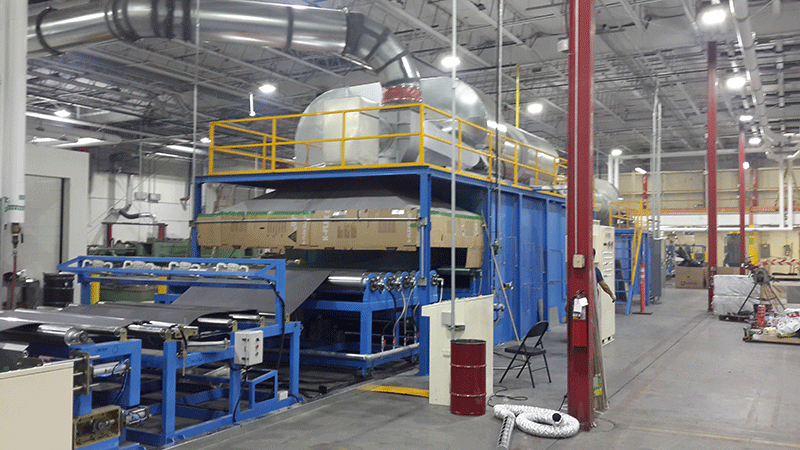

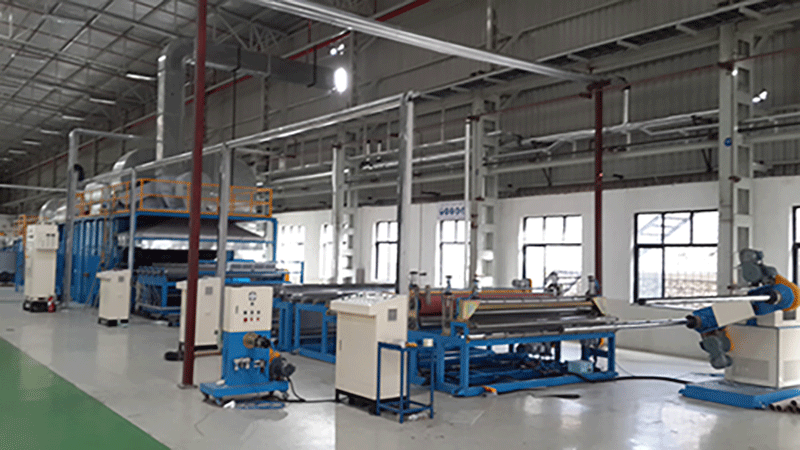

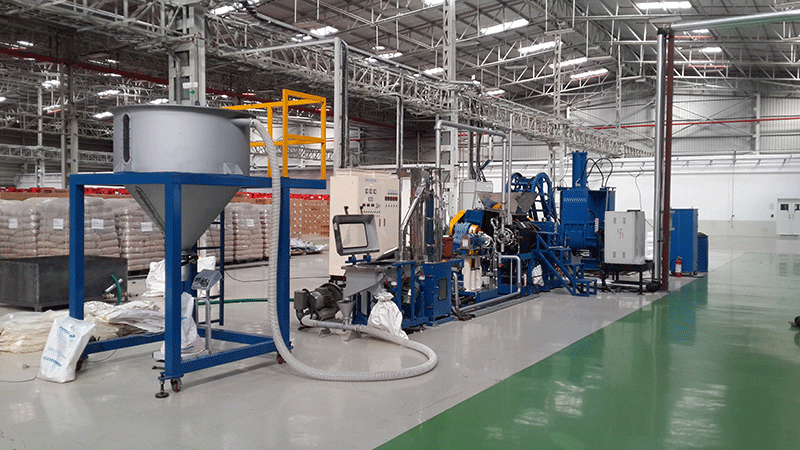

XLPE Foam Sheet Extrusion Line



Features of the machine

XLPE-Foam-Sheet-Extrusion-Line
XLPE-Foam-Sheet-Extrusion-Line
XLPE-Foam-Sheet-Extrusion-Line
XLPE-Foam-Sheet-Extrusion-Line
The Crosslinked PE Foam Sheet Production Line produces chemically crosslinked closed cell polyethylene foam sheet in continuous rolls with smooth, uniform, and aesthetic surface. This line is manufacturing the most preferred insulation material with the most advanced and innovative technologies.



Characteristics of XLPE foam
XLPE Foam Sheet Line

  • Superior cushioning
  • Great heat-insulating power
  • High buoyancy
  • Little water absorption
  • Outstanding weather stability and chemical resistance
  • Soft, strong with beauty
  • Easy to fabricate
  • High thermal stability







Specification

Model No.PI-XPE-150PI-XPE-170
CapactiyMax. 150kg/hrMax. 250kg/hr
Sheet widthMax. 1600mmMax. 2400mm
Sheet thicknessMax. 15mmMax. 15mm
Density25~200kg/m325-200kg/m3
Electricity350kw500kw



Applications

  • Automobile, marine, and aerospace vehicles
  • Building/construction thermal insulation, and moisture resistance
  • All kinds of single or double coated tape product
  • Camping mats and hockey helmets
  • Healthcare appliance type products

Crosslinked PE Foam Sheet Product Crosslinked-PE-Foam-Sheet-Production



XLPE-Line-Process2
